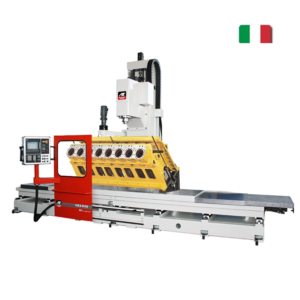

Cylinder boring and surface milling machine, VB150, AZ
Available on back-order
Repair, replacement of parts, 24/7 technical support
Verification in real production conditions
Setting up and checking the functionality of the equipment
Training operators to work with the equipment and providing practical demonstrations of its functionality.
The VB150 is a vertical boring and milling machine for cylinder blocks — ideal for high-performance automotive as well as medium diesel work. With the appropriate tooling the capacity covers 1.3″ to 8″ (≈33–203 mm). Standard supply includes a Ø13.5″ (≈343 mm) CBN milling head fitted with two double-sided CBN inserts. Polycrystalline cubic boron nitride (CBN) inserts deliver high-speed stock removal, excellent finishes and long, economical cutter life. From auto and diesel to motorcycle engines, VB machines bore and mill rapidly and accurately.
Advantages:
- Accurate boring and surfacing in one setup.
- Wide capacity: 1.3″–8″ (≈33–203 mm).
- Typical CBN performance: feed up to 500–600 mm/min and removal up to 1 mm per pass.
- Double-sided CBN inserts — high wear resistance, thermal stability and shock toughness.
- Optional AZ801 spindle storage/loader for quick changeover without removing the workpiece.
Highlights:
- Rigid cast construction for long-term accuracy.
- 13.5″ CBN head with 2 reversible circular inserts.
- CBN tooling recommended for high-speed machining of ferrous/non-ferrous materials up to 50–60 HRC.
Contact us to configure the VB150 for your workflow and arrange a live demonstration.
