Cylinder Head and Block Bearing Boring Machine, BAC1500, AZ
Available on back-order
Repair, replacement of parts, 24/7 technical support
Verification in real production conditions
Setting up and checking the functionality of the equipment
Training operators to work with the equipment and providing practical demonstrations of its functionality.

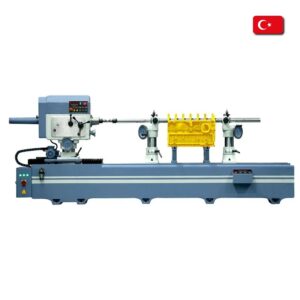

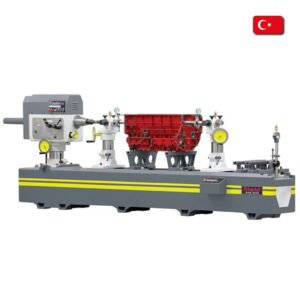

BAC1500 is a horizontal align-boring machine engineered for main and camshaft bearing saddles. A very rigid base, precision-machined reference surfaces and universal fixtures hold the work securely and prevent deflection. The low-voltage electrical system meets modern safety standards. Manual feed offers both rapid and micrometric control, while the automatic working feed provides variable speed in both directions. Boring-bar supports are vertically and horizontally adjustable to simplify set-up and reduce errors. The generous working stroke (up to 400 mm, other lengths on request) minimizes tool repositioning.
Key benefits:
- High accuracy and repeatability for main and cam bore alignment.
- Manual rapid/micrometric feed; automatic feed with variable speed forward and reverse.
- Vertical and horizontal adjustment of bar supports for perfect centering.
- Ergonomic controls located close to the work area.
Standard equipment:
- Pair of arch supports with two dial gauges
- Bridge support for the boring bar
- Side clamp assembly (4 pcs)
- Bridge leveling support with dial gauge
- Tool setting device complete with tool (AZ706)
- Engine-block clamping device with bar
- Pair of parallel supports 230×600 mm
- Pair of parallel supports 100×600 mm
- Pair of parallel supports 145×400 mm
- Service tools and Operating manual
Contact us to configure the BAC1500 for your jobs and arrange a live demonstration.
