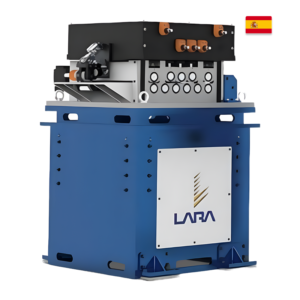

Combined metal straightening and feeding system, EMAE 85H/1250, LARA
Full warranty of 12 months
Repair, replacement of parts, 24/7 technical support
Quality control
Verification in real production conditions
Installation and adjustment
Setting up and checking the functionality of the equipment
Staff Training
Training operators to work with the equipment and providing practical demonstrations of its functionality.
EMAE-85 H is a combined metal straightening and feeding system with hydraulic support, designed for processing thicker materials, high-precision automatic feeding, and integration into modern press lines. Its reinforced construction, servo drive system, and high-performance straightening-feeding module ensure stable operation even in demanding industrial environments.
Advantages:
- Processing of materials up to 6 mm thickness.
- Feeding accuracy of ±0.05 mm at speeds up to 55 m/min.
- High feed repeatability ensured by the digital servo controller.
- Reinforced construction for stable processing of heavy materials.
- Low maintenance requirements and high operational reliability.
Features:
- EMAE-85 H straightening-feeding head with 7 straightening and 4 feeding rollers Ø85 mm.
- AC servo motor with built-in resolver for precise strip positioning.
- High-precision gearbox and cylindrical gear transmission for stable feeding performance.
- Hydraulic opening system for easier material threading and operation with centering pilots.
- Manual upper roller adjustment and micrometric straightening depth control.
- Color touchscreen LCD display with programmable feed length up to 9999 mm.
- External encoder for maximum feeding accuracy.
- Side guides for stable material support during operation.
Optional equipment:
- Sequential control program.
- Multi-step control program.
- External electronic cam module.
- Additional custom configurations for production requirements.
Contact us to receive expert advice and configure the optimal EMAE-85 H solution for your production needs.
