Cylinder boring and surface milling machine, VBX500, AZ
Available on back-order
Article: STS-1300-1-1-1-1-1-1-1
Full warranty of 12 months
Repair, replacement of parts, 24/7 technical support
Quality control
Verification in real production conditions
Exhibition center
The exhibit can be connected and demonstrated in operation.
Installation and adjustment
Setting up and checking the functionality of the equipment

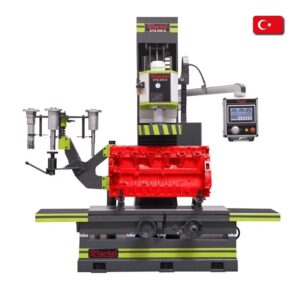

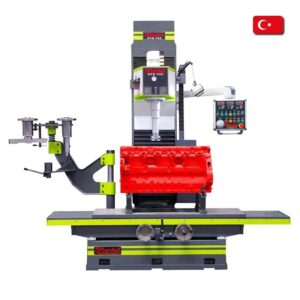

VBX500 is a CNC vertical boring and milling center for large workpieces. It offers professional ISO-CNC programming with customized cycles, three-axis motion via precision ball screws and brushless servomotors, a 4-station automatic tool changer, and a complete automatic work cycle. A heavy-duty fixture is available for boring and grinding very large connecting rods up to Ø500 mm.
Highlights & Benefits:
- ISO-CNC programming with user-defined macros.
- 3-axis precision motion (ball screws + brushless servos).
- Automatic tool change (4 tools) for unattended operation.
- Heavy-duty fixture for connecting rods up to Ø500 mm.
- Automatic centering (option): wireless probing with a Renishaw device for fast bore finding and alignment.
Standard equipment:
- CNC control with ISO programming
- Precision motion on 3 axes (ball screws + brushless servos)
- Automatic tool changer, 4-tool magazine
- CE-compliant safety enclosure
- Tool measuring device
- 2 pairs of parallel supports, H = 150 and 300 mm
- Service tools and Operating manual
Contact us to configure the VBX500 for your workflow and arrange a live demonstration.
