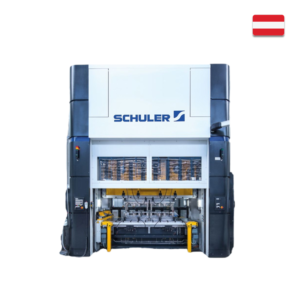

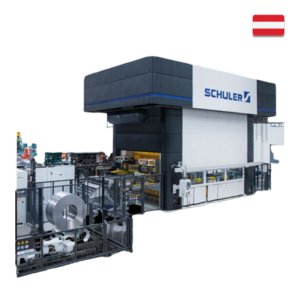

TRITON TST-Series servo presses feature Schuler’s unique TwinServo drive concept, providing maximum resistance to eccentric loads and enabling greater flexibility in process planning.
The two torque motors, integrated into the press frame, are electronically synchronized. This layout leaves sufficient space for drawing cushions and scrap chutes while enhancing die placement flexibility. Reduced deflection (by 30%) and outstanding tilting resistance ensure higher accuracy, longer die service life, and shorter testing times.
The compact design lowers rotational inertia by 25% compared to conventional presses, improving dynamics. With a height of around 6 meters, the press occupies about 30% less floor space. Locating the drives in the lower frame reduces noise levels and ensures a clean working area without lubrication.
Advantages:
- Innovative drive with two electronically synchronized torque motors.
- Higher permissible eccentric load at the same press force.
- 30% reduction in deflection.
- Active parallel slide positioning.
- Improved visibility of the working area.
- Noise reduction for operating personnel.
- No lubrication in the working area.
- Reduced footprint — up to 30% less space required.
- Integrated Optimizer curve generator.
- Quick-Lift function shortens die testing and setup times.
