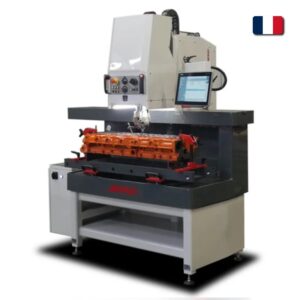

Valve seat machining machine, 100 ES, SERDI

The SERDI 100ES is a high-performance valve seat machining machine specifically designed for heavy and large cylinder heads. It is equipped with a powerful 3-kilowatt electro-spindle with variable speed, providing high torque and exceptional precision. Thanks to the patented double air cushion centering system, the SERDI 100ES ensures automatic alignment of each valve guide, eliminating any misalignment or angular deviations. The machine also features a digital depth control system with an accuracy of up to 0.01 mm, allowing for maximum precision during operation.

With its robust construction and ergonomic control panel, the SERDI 100ES offers convenience and efficiency. The machine is ideal for machining valve seats with diameters ranging from 28 to 120 mm, making it a versatile solution for workshops handling large diesel engines, marine engines, stationary engines, and railway engines.

Advantages:

• Powerful electro-spindle with high torque for heavy-duty parts machining.
• Patented double air cushion centering system.
• Digital depth control with 0.01 mm accuracy.
• High spindle speed up to 840 rpm.
• Easy cylinder head movement with pneumatic clamping and an air cushion table.

Features:

• Double air cushion centering system providing precise alignment regardless of misalignment or angular deviation.
• Variable speed electro-spindle ranging from 40 to 840 rpm, ensuring high productivity.
• Digital display for spindle speed and machining depth, allowing for perfect accuracy.
• Pneumatic clamping of cylinder heads with easy movement on an air cushion table.

Contact us for a consultation on selecting and operating the machine. Request a free demonstration of the SERDI 100ES machine. Learn more about our products and their advantages.
