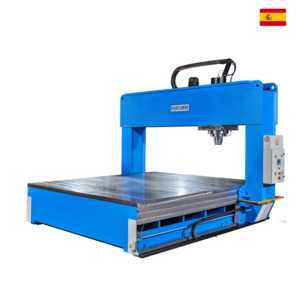

Hydraulic Straightening Press With Moving Gantry Frame, ST-150, HIDROGARNE

Hidrogarne ST are motorized hydraulic straightening presses with a movable gantry frame and adjustable head, available in three force capacities ranging from 80 to 150 tons. They are specially designed for straightening welded structures and sheets cut by oxy-fuel or laser processes. Their design facilitates the loading and unloading of large parts, plates, and structures, optimizing workflow and reducing handling time. Thanks to the lateral movement of the cylinder and the longitudinal movement of the gantry, it is possible to work on different pressure points without moving the part.

Structure and tables:

• Electro-welded structure made exclusively of S355JR steel.
• The frame is stabilized and machined after welding to ensure perfect parallelism and high precision.
• The design has been calculated and verified using FEM software, guaranteeing high standards of rigidity, quality, and accuracy.
• Manual longitudinal movement of the gantry.
• Manual lateral movement of the head.

Cylinder and hydraulic unit:

• Double-acting cylinder with honed sleeve.
• Chromed piston for increased wear resistance.
• Maintenance-free guides with anti-friction coating.
• Cylinder control operated by a lever-type hydraulic distributor.
• Removable frame designed to protect the piston from damage.
• Two-speed motorized hydraulic power unit.
• Automatic disengagement of the approach speed by valve control.
• Hydraulic pressure decompression system for machine protection.

Electrical equipment, control and safety:

• Electrical system includes a motor protection switch.
• Emergency stop button for increased operator safety.
• Glycerine-filled pressure gauge with force indication in tons.
• Supplied with hydraulic oil.
• Delivered with an operation manual.
• All models comply with the essential safety and health requirements according to CE standards.

Optional accessories:

• Bottom table 3000 × 1500 × 75 mm for ST-150.
• Bottom table 2000 × 1150 × 60 mm for ST-100.
• Bottom table 1750 × 1050 × 50 mm for ST-80.
• 4 ejector cylinders integrated into the bottom table, 2 t force each (ST-80).
• 6 ejector cylinders integrated into the bottom table, 2 t force each (ST-100 / ST-150).
• 250 mm cylinder extension.
• Wireless push-button control.
• Machine geometry adapted to customer requirements.
