Cylinder Head and Block Bearing Boring Machine, STS 2250, SARITAS

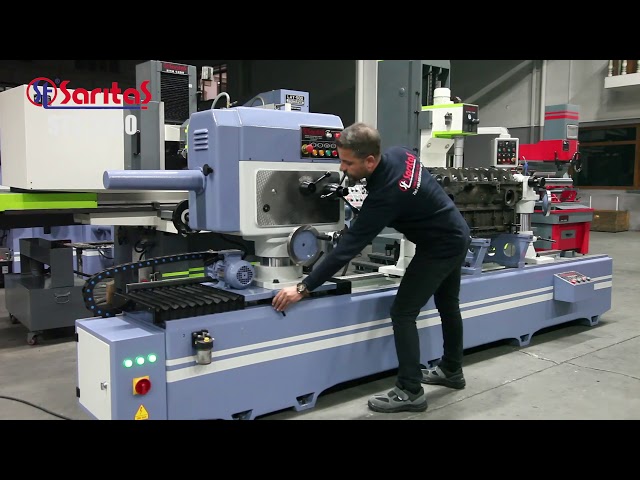

The SARITAS STŞ 2250 is a versatile horizontal boring machine designed for processing all types of main engine block bearings and camshaft bearings. It is ideal for restoring various engine types, making it an essential tool for workshops engaged in engine repair. The spindle head and mandrel bearings are made of steel, and the precision-ground columns are chrome-plated, ensuring long-lasting performance and stability. Operators can select mandrels and support bases of various diameters based on engine size.

Once the machine starts, the main working head is automatically lubricated, and the mandrel bearings are lubricated via a drip-feed system during operation. Movement of the working head and mandrel bearings—both horizontally and vertically—is controlled effortlessly, while engine centering with clamp connections ensures quick and precise setup.

STŞ 2250 offers variable spindle speeds, adjustable feed rates, and precise control, resulting in smooth and accurate working surfaces. Safety is further enhanced by an automatic stop system during mandrel movement. Two independent control panels work in parallel, simplifying adjustments and ensuring seamless operation throughout the process.

Advantages:

• High precision and efficiency in boring engine bearings.
• Automatic lubrication system for continuous and smooth operation.
• Sturdy steel components and chrome-plated columns ensure durability.
• Supports the repair of a wide range of engine types.
• Parallel control panels provide flexibility and ease of use.

Features:

• Maximum engine block length: 2250 mm.
• Boring diameter range: 28 mm to 225 mm.
• Adjustable spindle speed from 10 to 700 RPM with digital display.
• Automatic feed rates: 0.04, 0.08, and 0.11 mm/rev.
• Maximum spindle movement: 450 mm.
• Machine dimensions: 4350 mm (length) × 1450 mm (height) × 670 mm (width).
• Machine weight: 1760 kg (without packaging), 2000 kg (with packaging).
