Common Rail nozzles test bench, CR819, Beacon

Injector and Pump Test Stands are critical tools for diagnosing, testing, and tuning diesel systems in vehicles. They play a key role in assessing the performance of injectors and pumps, detecting issues, and ensuring optimal engine operation, which is crucial for maintaining vehicle efficiency and environmental sustainability.

These stands allow for testing under various load conditions and pressures, identifying fuel delivery inconsistencies, verifying proper atomization, and ensuring the correct fuel quantity. This is essential for effective fuel combustion, emission reduction, and extending engine lifespan.

The stands also serve as valuable equipment for training professionals in the maintenance and repair of diesel systems.

An integrated diesel-electric injection system management system utilizes automatic control, making it highly convenient for servicing and testing electromagnetic valve-type Common Rail or piezoelectric injectors, high-pressure pumps, medium-pressure Common Rail HEUI injectors, driven pumps, fuel pumps like the 320D, and more.

It can test thousands of electronic fuel injectors of various types and models, including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, etc., as well as fuel pumps with complete experimental data.

Advantages:

• Comprehensive automatic operation including test bench speed, oil rail pressure, flow measurement, report analysis, etc.
• Testing capabilities for electromagnetic valve or piezoelectric crystal-type injectors, high-pressure Common Rail pumps from Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, Beiyou, and others.
• Optional testing for medium-pressure Common Rail HEUI injectors and the Caterpillar 320D high-pressure pump.
• Test results match original factory standards with high accuracy.
• Fully open database allowing part number additions.
• Automatic updates to test data and functions.

Features:

• Testing up to 4 Common Rail injectors simultaneously with 4 flow sensors.
• Piezoelectric injector testing capability.

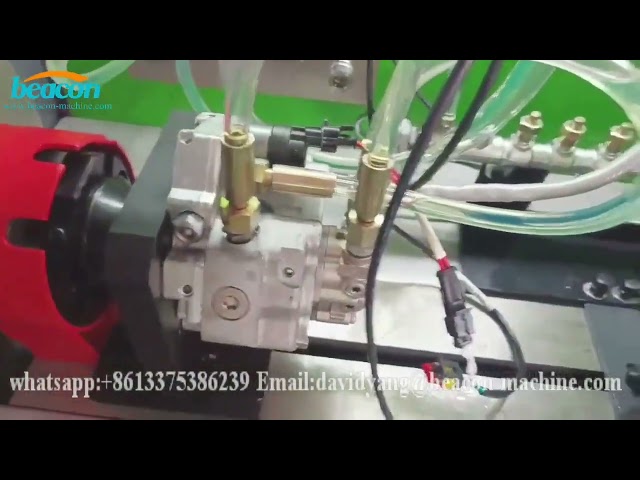

• Common Rail and DENSO HP0 pump testing.
• Bosch Denso Siemens Delphi Cummins coding function.
• CP4 pump testing.
• Testing of 4-pin Bosch injectors.
• ZME test measurement block.
• AHE injector stroke dynamics measurement (with Bosch 110, 120 stroke measurement tool and dial indicator).
• BIP function for simultaneous testing of 4 injectors.

Contact us for consultation on the selection and operation of the machine. Order a free demonstration of the “model” machine. Learn more about our products and their advantages.
