Brinell hardness tester, EASYFLAG 3000, Easydur
Available on back-order
Article: easy3000
Full warranty of 12 months
Repair, replacement of parts, 24/7 technical support
Quality control
Verification in real production conditions
Exhibition center
The exhibit can be connected and demonstrated in operation.
Installation and adjustment
Setting up and checking the functionality of the equipment

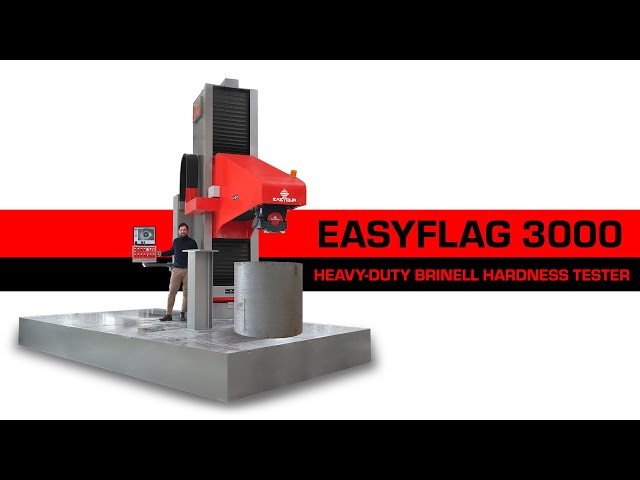

EASYFLAG 3000 is a special hardness tester for measuring the hardness of samples on the Brinell and Rockwell scales. A milling cutter is built into the turret head of the hardness tester, which is used for additional surface preparation of the samples before testing, which simplifies the analysis process and the operator’s work.
EASYFLAG 3000 is a fully automatic hardness tester, the test process is controlled by software.
SPECIFICATIONS
- Milling of small parts without the use of additional holders and accessories
- The possibility of milling samples with a hardness of up to 55 HRC
- The milling depth is adjustable from 0 to 1 mm with an accuracy of 0.01, up to 3 mm with an accuracy of 0.02 mm.
- Autofocus Load range: 750, 1000, 3000 kg
- Carbide balls Ø5 and Ø10 mm
- Functional control with a single command
- Strong steel construction
- Built-in high-resolution camera and illumination of the puncture site on the sample
Download brochure
